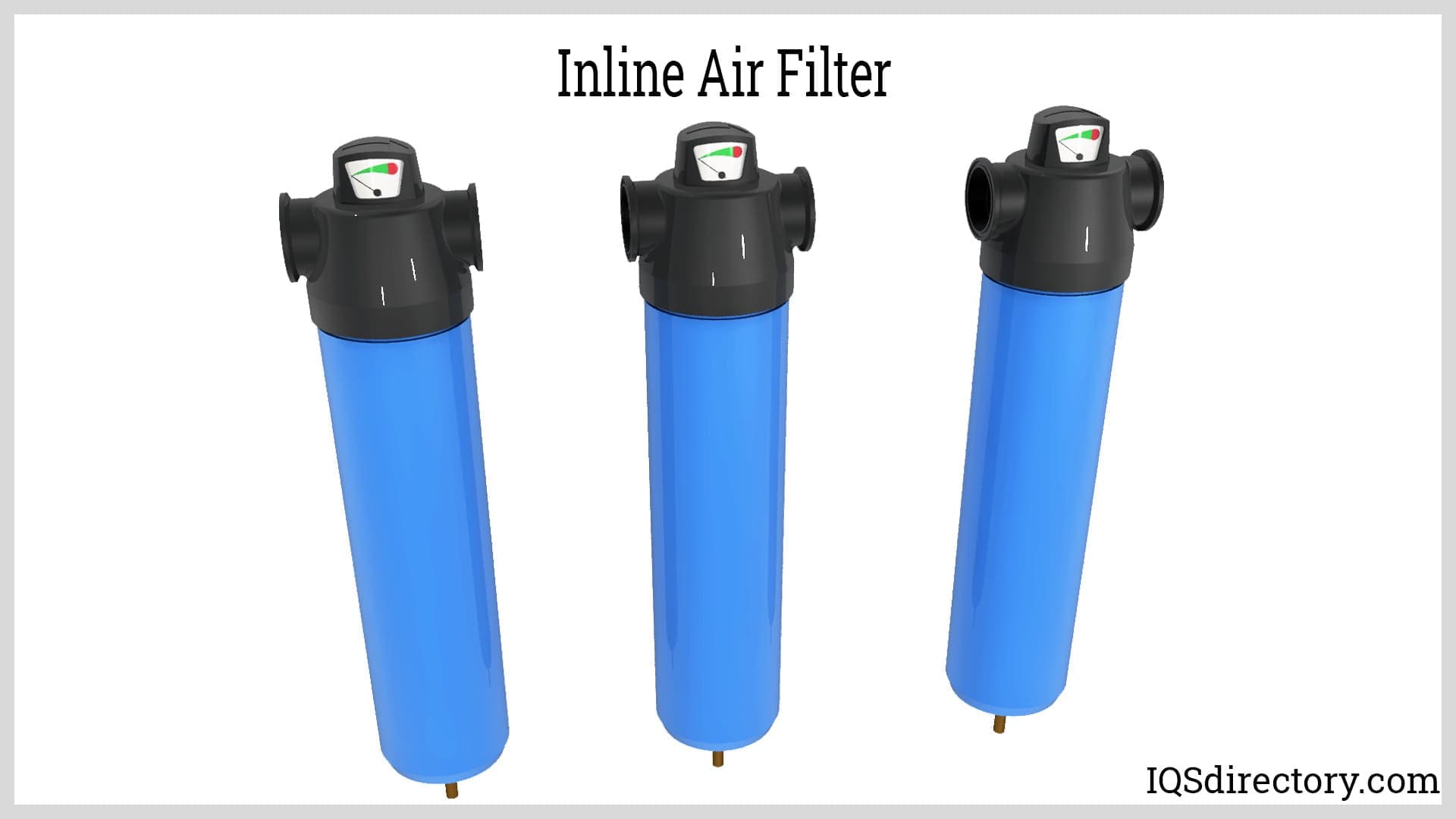

What Is an Inline Air Filter?

An inline air filter is a filtration device installed directly within a compressed air line or duct system to remove particulates, moisture, oil, and other airborne contaminants. These filters play a critical role in maintaining system purity, improving air quality, and protecting sensitive downstream equipment, such as pneumatic tools, air compressors, and precision instruments.

Construction of an Inline Air Filter

Most inline air filters are constructed from robust, corrosion-resistant materials and engineered for easy maintenance. The main components include:

• The Case – The protective housing for internal components, typically high-grade plastics or, for heavy-duty applications, aluminum or stainless steel.

• An Electric Fan – Certain inline filters, especially for HVAC or air purification systems, incorporate a fan to draw air through the filtration media.

• Filters – Filter elements positioned within the case, using media such as pleated paper, fiberglass, activated carbon, or synthetic fibers.

• Control Switches – Filters equipped with fans or electronic monitoring may feature switches to adjust fan speed, toggle power, or monitor filter status.

Materials Used for an Inline Air Filter

Common materials used in inline air filter construction include:

• Pleated Paper – Ideal for general dust and particulate filtration in low to moderate airflow applications.

• Fiberglass – Highly effective for trapping fine particles and aerosols in industrial compressed air systems.

• Foam – Offers excellent dust-holding capacity, often used in pre-filtration stages.

• Activated Carbon – Specialized for adsorbing odors, VOCs, and oil vapors.

• Aluminum or Stainless Steel Mesh – Provides durability and reusability for high-temperature or corrosive environments.

• Plastic Components – Used for lightweight, corrosion-resistant filter housings and structural supports.

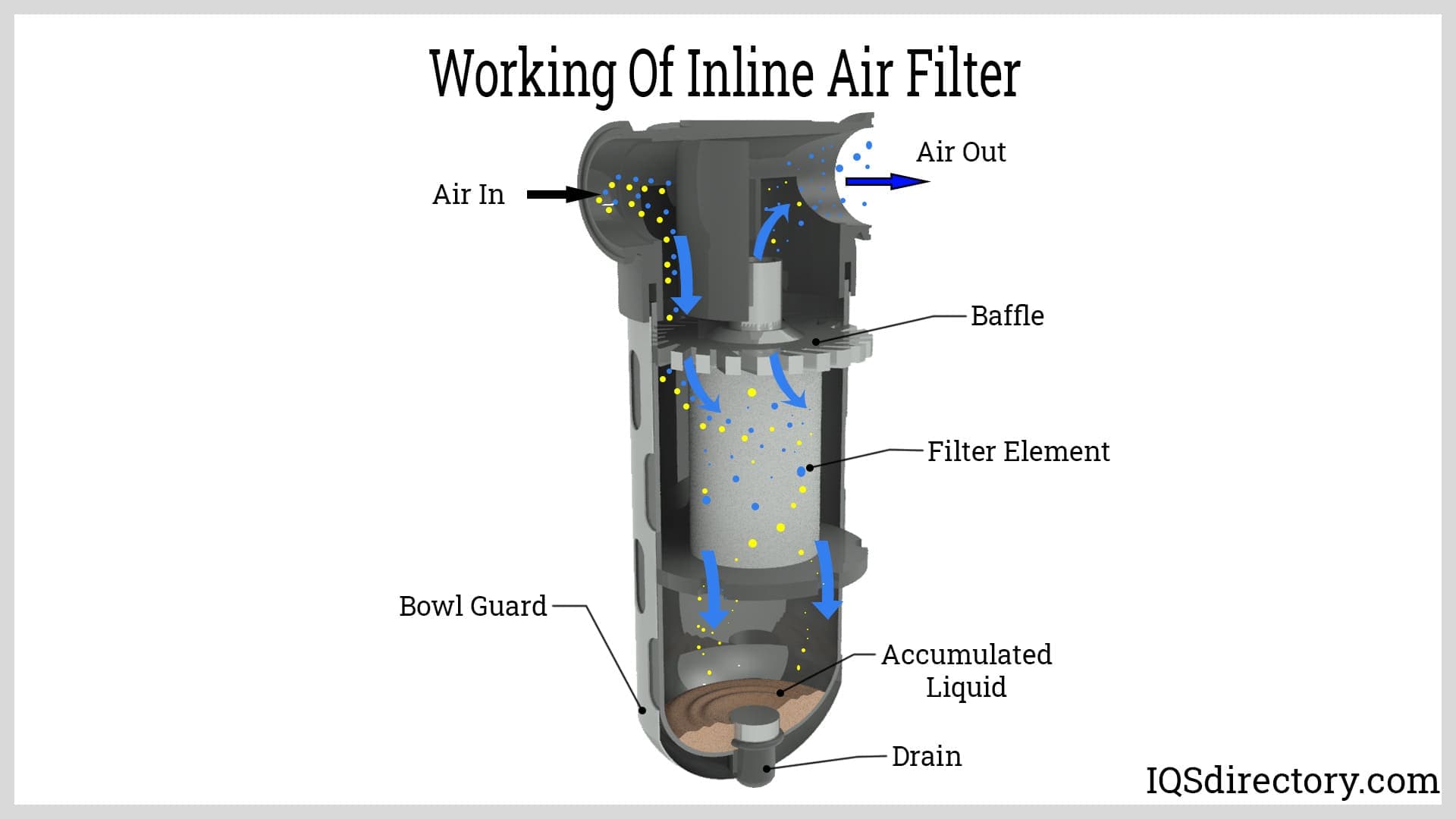

How Does an Inline Air Filter Work?

Inline air filters are engineered for seamless integration into compressed air piping systems, HVAC ducts, or pneumatic equipment, trapping and removing solid particles, oil aerosols, water droplets, and chemical vapors before they can cause damage or reduce air quality.

Initially, compressed air passes through a mesh pre-filter, which traps larger particles and initiates liquid coalescence. The condensed liquid droplets move into a separation chamber, allowing them to aggregate and settle, and the resulting larger droplets are guided to the drain.

• Inlet – Compressed air enters the filter housing through an inlet port.

• Air Path – Air is directed through pre-filters and main filter media to maximize contaminant capture.

• Filter Baffle – Baffles and internal chambers channel air flow, enhancing particle separation.

• Filter Discharge – Purified air exits the filter via the outlet port.

• Filter Element – The core filtration media captures particulates and adsorbs vapors.

• Filter Bowl – A collection chamber captures separated water, oil, and debris.

• Filter Quiet Zone – Minimizes turbulence, allowing liquids and particulates to settle before draining.

• Drain – Automatic or manual drains remove collected contaminants.

Applications of Inline Air Filters

Inline air filters are integral to a diverse array of industries and processes, including:

• Industrial Manufacturing – Protecting pneumatic tools, automation systems, and robots from dust, oil, and moisture.

• Food & Beverage Processing – Ensuring hygienic air supply for packaging, filling, and mixing operations.

• Pharmaceutical Production – Maintaining sterile environments and preventing cross-contamination.

• Automotive & Paint Shops – Delivering clean, dry air for spray booths, finishing lines, and assembly plants.

• Laboratories & Cleanrooms – Supporting research and sensitive manufacturing processes with high-purity air.

• HVAC & Building Ventilation – Enhancing indoor air quality in residential, commercial, and institutional buildings.

Benefits of Inline Air Filters

Investing in high-quality inline air filters delivers measurable advantages, including:

• Improved Air Quality – Removes dust, oil mist, water aerosols, and chemical vapors to meet or exceed ISO air purity standards.

• Equipment Protection – Prevents abrasive particles, corrosive chemicals, and moisture from damaging compressors and pneumatic actuators.

• Operational Efficiency – Clean, dry air reduces system downtime and boosts productivity.

• Regulatory Compliance – Helps industries comply with OSHA, ISO, and FDA air quality requirements.

• Reduced Maintenance – Automated draining and easy filter replacement simplify upkeep.
