HEPA Air Filter Operation

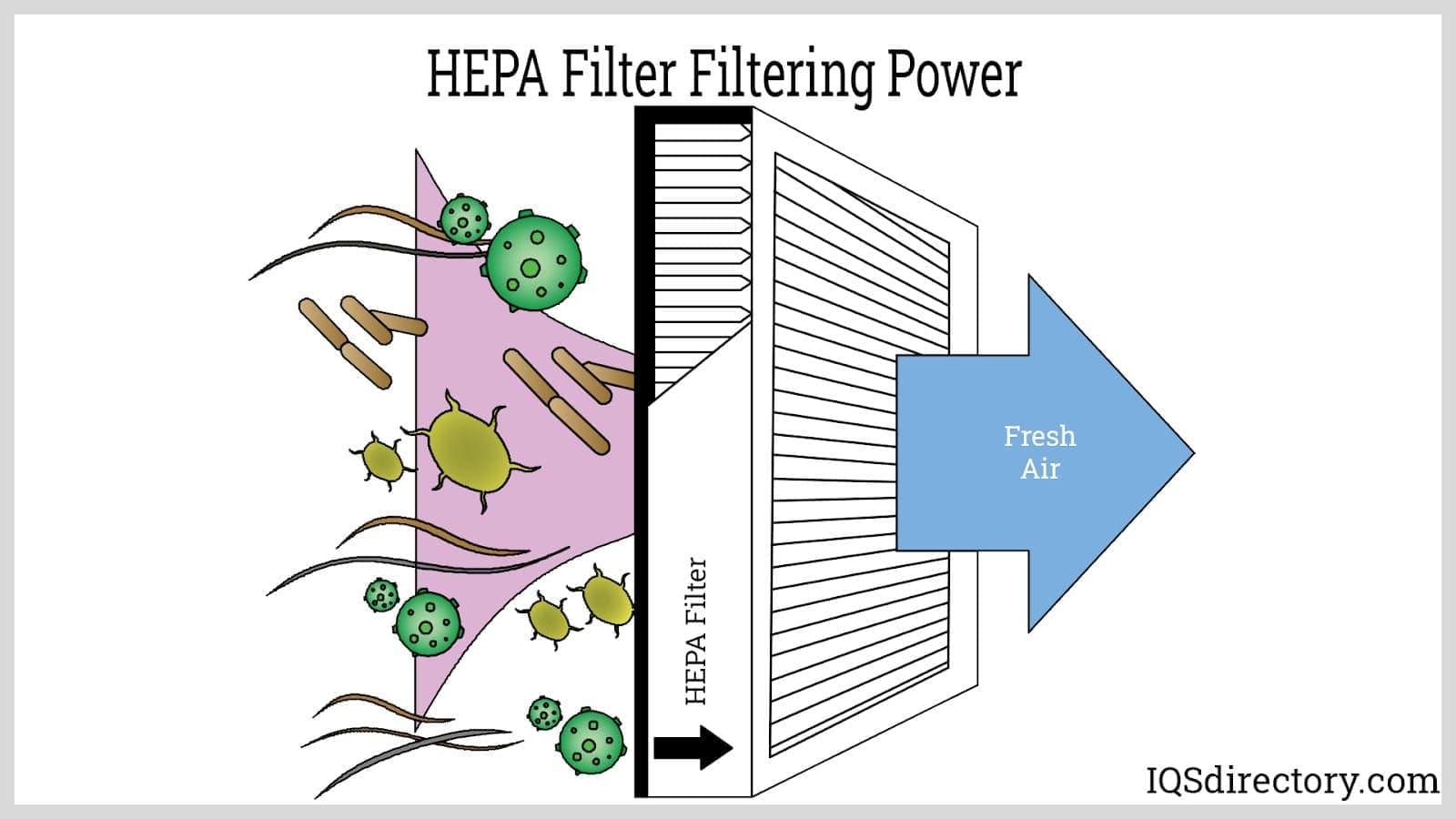

HEPA filters use a filtration mechanism comparable to a sieve, strainer, or net but far more complex and capable of capturing even the smallest airborne particles. The HEPA filter process has four mechanisms: electrostatic attraction, interception, diffusion, and impaction. The first items to be removed, like with all types of filters, are big and simple to catch. Then, progressively smaller particles are captured as filtering progresses, beginning with the initial stages and continuing through finer materials.

HEPA Air Filter Design

The filters are usually constructed from fiberglass fibers randomly placed in densities. The fiber's diameter and thickness directly influence the filter's effectiveness and the proportion of its filtration ability. Like similarly efficient ULPA filters, HEPA filters tend to be extremely dense, which may necessitate a flow system with a more potent engine than a typical air purifier filter because of the additional power needed to move most of the air past the filter. As the air passes through the filter, particles are caught by the numerous interlocking fibers, preventing their recirculation back into the atmosphere.

HEPA Air Filter Fibers

Fibers of polyester or fiberglass with diameters smaller than one micron are densely woven together to create HEPA filters. A mesh labyrinth without a clear path is made by twisting, turning, scattering, and randomly placing the fibers in various directions. HEPA filters may capture particles as thin as 0.3 microns since the gaps between the fibers are less than half a millimeter wide.

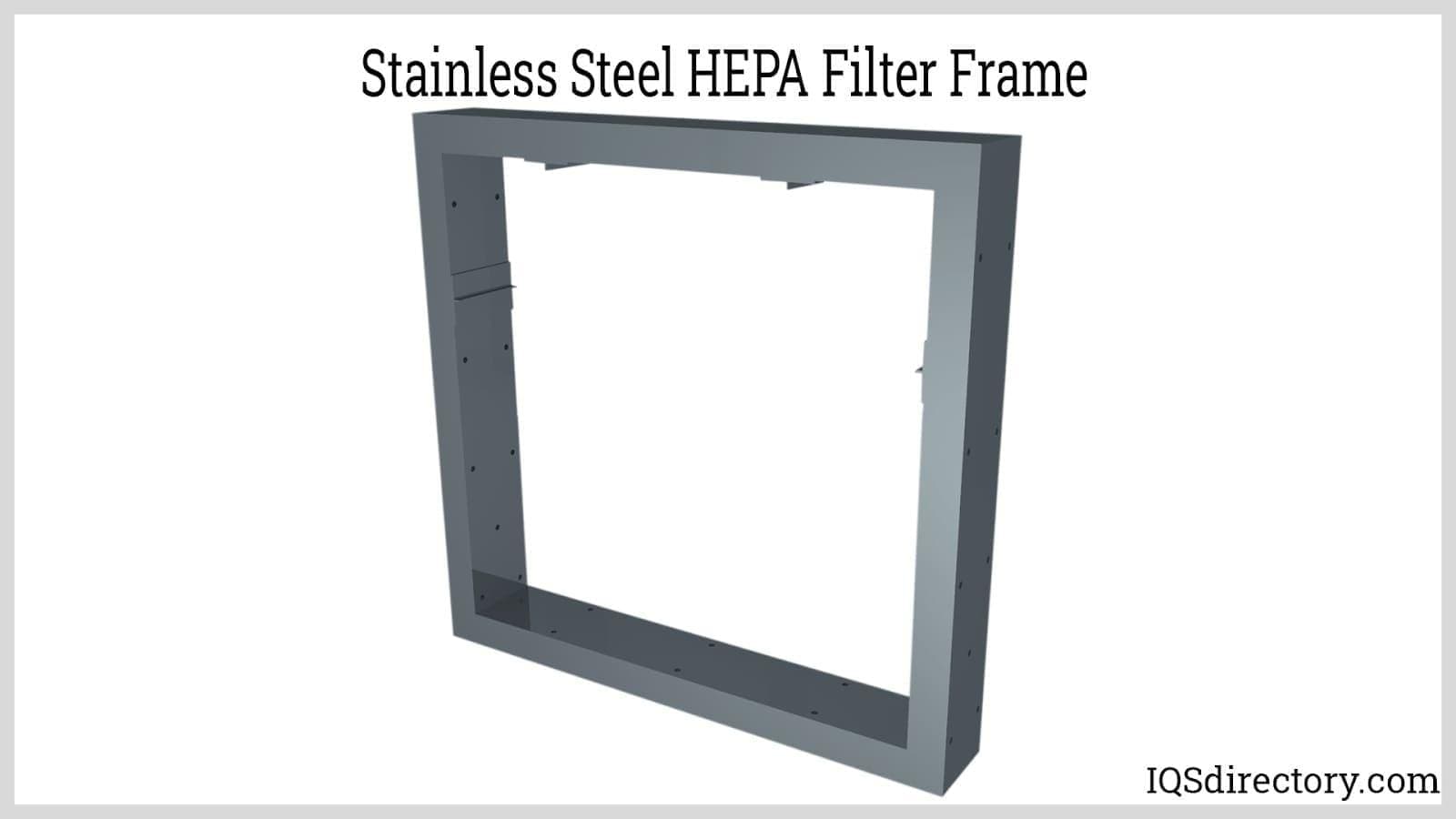

HEPA Air Filter Frame

A HEPA filter's frame may be constructed from a wide range of materials. The frames for manufacturing and industrial applications are typically constructed from hardy, sturdy, and long-lasting materials like carbon steel, aluminum, or stainless steel. However, the frame's size needs to be carefully considered because it can cause the pressure drop to increase due to its opposition to the airstream.

HEPA Air Filter Applications

HEPA air filters have a variety of uses. They are also essential in medical settings, including cleaning rooms, hospital operating and isolating rooms, and pharmaceutical manufacturing. The purest HEPA filter, which can also be combined with UV light to guarantee air purity, helps to prevent the spread of viral and bacterial illnesses in the air. Due to the extreme levels of cleanliness needed in the air, HEPA filters are also used in other applications, such as the circulation systems of newer cars and airplanes.

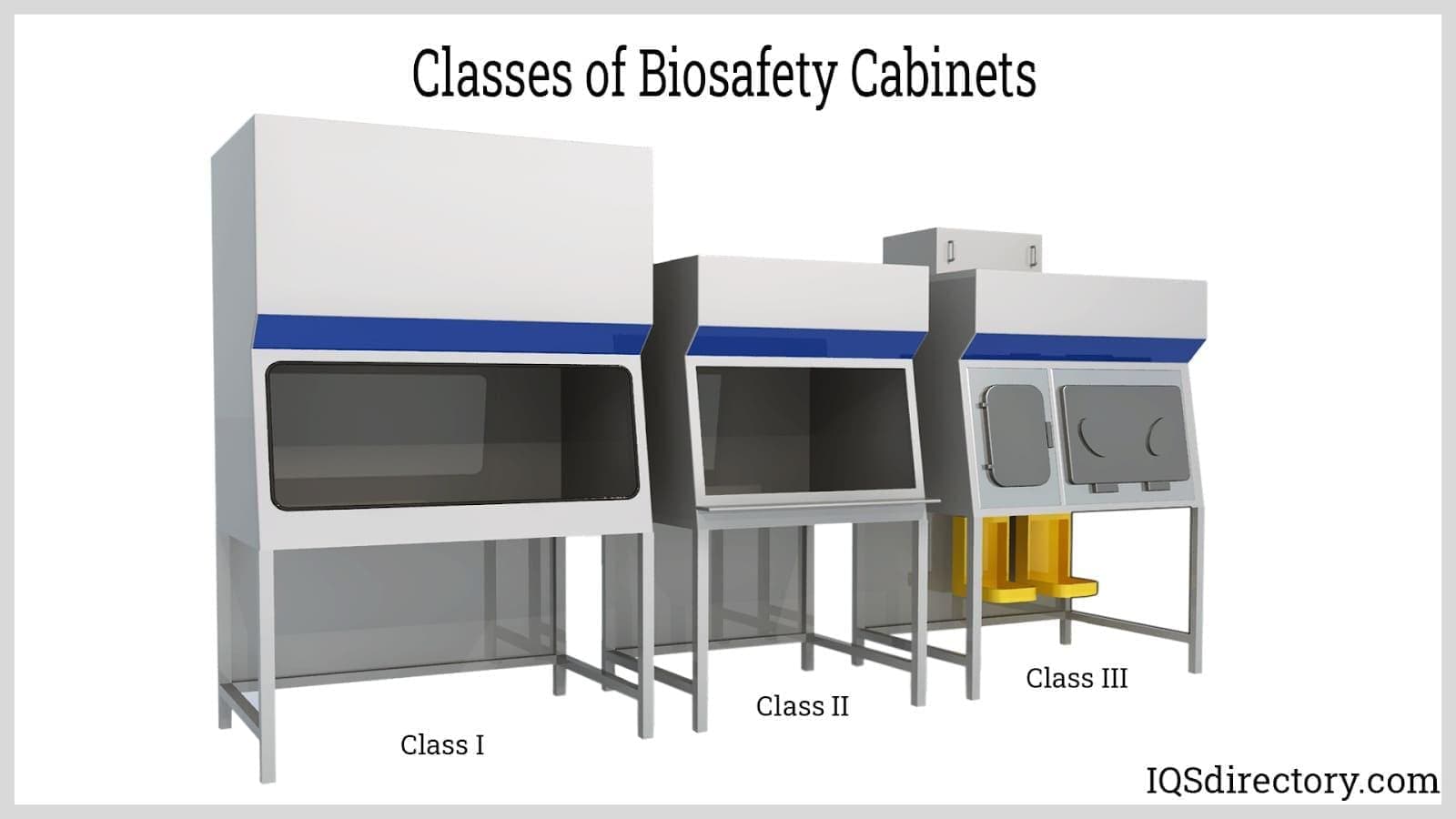

Biosafety Cabinet

The purpose of biosafety cabinets is to safeguard employees who handle dangerous products. They have vertical laminar airflow, a barrier for bacteria and airborne particles. The air that leaves the work area and is released into the environment is cleaned using HEPA filters. Biosafety cabinets come in three classes: I, II, and III. Safety for employees, the atmosphere, and products is provided by classes II and III. First-class cabinets are fairly simple and safeguard both people and the environment.

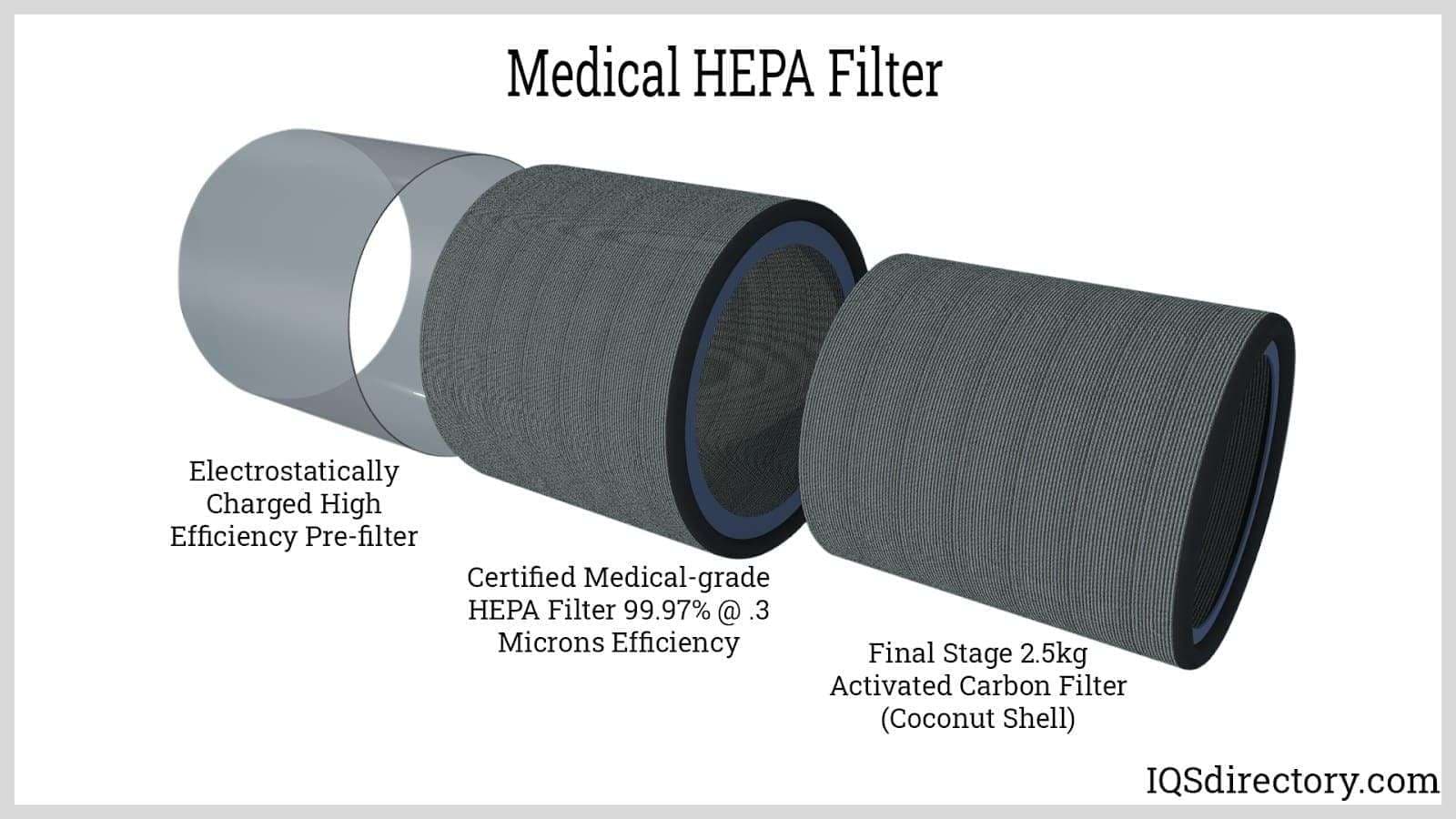

Hospitals Use HEPA Air Filters

Hospitals need HEPA filters, just like clean rooms, to stop patient contamination and the transmission of infectious and harmful diseases.

• Medical Suites – It is crucial to filter and maintain clean and clear air in operating rooms. HEPA filters are utilized to protect patients from airborne particles that could harm them while sensitive organs are exposed during medical operations.

• Incubators – Due to the nature of their immature immune systems, newborns are prone to various illnesses. In neonatal intensive care units, HEPA filters are particularly crucial for removing bacteria, viruses, and other infectious organisms from the air in incubators.

• Laboratories – Laboratories deal with harmful microorganisms and operate similarly to a clean room. The removal of germs, pathogens, and pollutants by HEPA filters under such circumstances is mandated by law to stop their spread outside the testing area.
